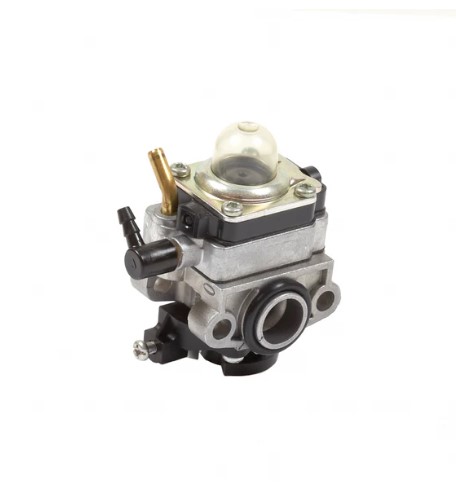

BRIGGS & STRATTON 696949 Engine Carburetor

SKU: 696949 Brand:
BRIGGS & STRATTON
Availability:
In Stock
(0)
$104.57 Price reduced from $108.95
Save $4.38
Have a Question? +1 (866) 963-0907

Description

The Briggs & Stratton 696949 Engine Carburetor operates by mixing incoming air with fuel in a controlled ratio before delivering the combustible mixture into the engine cylinder for ignition. It regulates fuel flow through internal jets and passages while air is drawn through the intake throat during engine operation. This engine carburetor is mounted on the engine intake side, where it connects between the air cleaner assembly and the intake manifold. Its placement supports controlled air-fuel mixture delivery into the engine during operation.

Dimensions:

  • Weight: 0.1 lbs

More Information:

The BRIGGS & STRATTON 696949 Engine Carburetor regulates fuel and air delivery for compatible lawn tractor engines, supporting reliable starting, controlled throttle response, stable idling, and consistent mowing performance.

Common Symptoms:

• Engine stalls shortly after starting.

• Engine hesitates during acceleration.

• Engine idle becomes uneven.

• Engine loses power under load.

• Fuel flow becomes inconsistent.

Startup Stalling

Quick Check: Inspect fuel condition and examine the carburetor area for visible contamination, blockage, or loose fuel connections.

Fix Suggestion: Clear accessible restrictions and use fresh fuel when existing fuel appears stale or contaminated.

Prevention Tip: Follow proper fuel storage practices to reduce deposits that may interfere with carburetor operation.

Acceleration Hesitation

Quick Check: Observe throttle response and inspect the carburetor linkage for sticking, binding, or restricted movement.

Fix Suggestion: Remove debris around the linkage and confirm smooth movement through its normal operating range.

Prevention Tip: Keep grass clippings and dirt away from the carburetor linkage during routine maintenance.

Uneven Idle

Quick Check: Examine the carburetor surroundings and fuel connections for contamination, looseness, or restricted delivery.

Fix Suggestion: Clean accessible buildup and secure appropriate connections affecting consistent fuel delivery to the carburetor.

Prevention Tip: Inspect the carburetor area during scheduled lawn tractor engine maintenance.

Power Loss Under Load

Quick Check: Check the fuel line supplying the carburetor for kinks, blockage, or restricted routing.

Fix Suggestion: Correct fuel-line restrictions and restore unobstructed fuel delivery toward the carburetor.

Prevention Tip: Inspect fuel-system components before extended mowing or demanding engine operation.

Customer Experience: A customer reported smoother starting and steadier engine performance after correcting fuel delivery concerns involving the carburetor.

Disclaimer: Troubleshooting guidance provided for reference only.
