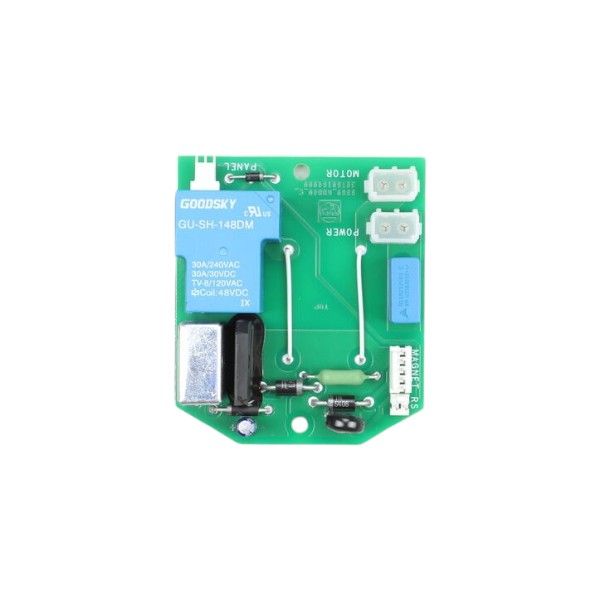

Fein 30798550060 Mortiser PCB Magforce Reed 120V

The Fein 30798550060 Mortiser PCB Magforce Reed is made to work with 120V mortisers by handling electrical input from the magnetic reed system. A damaged board can disrupt electronic control, causing irregular machine behavior or preventing the mortiser from operating as normal.

Common symptoms include:

• Mortiser does not enter the operating mode.

• Reed switch input is ignored by the electronics.

• Machine stops during normal cutting.

• Control board develops electrical faults.

• Machine operation becomes erratic.

Mortiser Will Not Enter Operating Mode

Quick Check: The machine powers up but remains inactive after the start command.

Fix Suggestion: Install a spare PCB Magforce Reed if the electronic board is no longer responding correctly.

Prevention Tip: Use a stable electrical supply to reduce stress on electronic components.

Reed System Not Responding

Quick Check: The magnetic reed activation does not produce any machine response.

Fix Suggestion: Replace the PCB when it can no longer receive the reed system input.

Prevention Tip: Avoid striking or placing excessive pressure on the sensor area.

Machine Stops Mid-Operation

Quick Check: The mortiser halts even though power remains available.

Fix Suggestion: A different control board may be needed if internal electronic faults interrupt operation.

Prevention Tip: Keep the electrical enclosure dry and free from contaminants.

Control Board Electrical Failure

Quick Check: The board displays signs of heat damage or failed electronic components.

Fix Suggestion: Replace the damaged PCB to restore proper electronic control.

Prevention Tip: Disconnect the machine from power before carrying out electrical service.

Customer Experience: My Fein mortiser would start only occasionally before replacing the 30798550060 PCB Magforce Reed 120V. After installation, the controls responded consistently and the machine has been operating properly.
