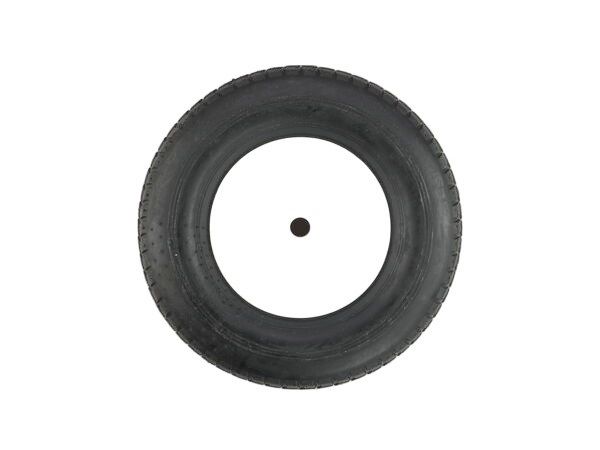

Graco 113647 Sprayer Pneumatic Wheel

The Graco 113647 Sprayer Pneumatic Wheel is used for applicable paint sprayer frames, providing rolling support that allows it to move equipment across work areas during setup and repositioning.

This part may fix the following symptoms:

• Sprayer movement feels uneven across the work surface.

• Wheel develops noticeable wobbling during repositioning.

• Rolling resistance increases while moving equipment.

• Pneumatic wheel shows cuts, cracks, or deformation.

• Wheel movement becomes irregular around the axle.

Wheel Wobbles During Movement

Quick Check: Move the sprayer slowly and observe the wheel for side-to-side movement.

Fix Suggestion: Align the wheel with the axle and mounting hardware correctly.

Prevention Tip: Keep wheel hardware properly positioned during routine sprayer maintenance.

Rolling Resistance Increases

Quick Check: Push the sprayer across a level surface and note unusual resistance.

Fix Suggestion: Remove debris around the wheel and axle contact areas.

Prevention Tip: Keep the wheel path clear of dried coating and debris.

Wheel Surface Becomes Damaged

Quick Check: Examine the pneumatic wheel for cracks, cuts, or flattened areas.

Fix Suggestion: Fit a suitable wheel when damage affects normal equipment movement.

Prevention Tip: Avoid dragging the sprayer over rough or obstructed surfaces.

Wheel Movement Feels Irregular

Quick Check: Rotate the wheel manually and observe its movement around the axle.

Fix Suggestion: Correct the wheel position if it does not rotate evenly.

Prevention Tip: Review wheel movement periodically during equipment maintenance.

Customer Experience: A customer stated that the Graco 113647 Sprayer Pneumatic Wheel made moving the paint sprayer easier during repositioning and routine setup.
