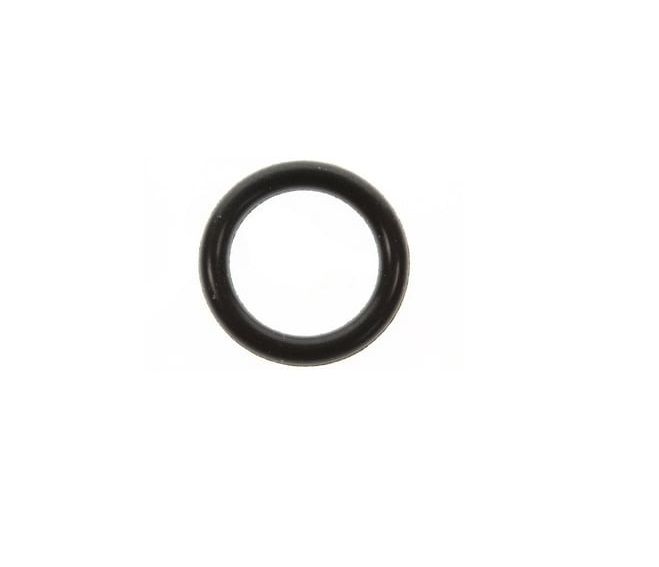

Honda Marine 16074-ZZ5-003 Vapor Separator O-Ring

Product Overview:

Creates a sealed interface within the vapor separator assembly of Honda Marine outboard engines to help contain fuel and prevent leakage. The Honda Marine 16074-ZZ5-003 O-Ring is positioned between adjacent components in the vapor separator, where its sealing function supports the integrity of the fuel system during engine operation.

Leak Prevention:

The O-ring forms a sealing interface between connected vapor separator components. Its resilient sealing profile conforms to the connected surfaces to help restrict fuel or vapor from escaping through the joint during normal operation. Maintaining this sealed interface is important to preserving the intended containment of the vapor separator assembly.

Vapor Separator System Connection:

Installed within the vapor separator assembly, the O-ring works with adjacent components such as the separator cover and other sealing elements identified in Honda parts documentation. Its position within this assembly allows it to maintain a sealed interface between connected surfaces while supporting the fuel-system enclosure provided by the vapor separator.

Replacement Guidelines:

The Honda Marine 16074-ZZ5-003 O-Ring should be replaced when deterioration or damage affects its ability to maintain the intended seal within the vapor separator assembly. Replacement may be required if cracking, splitting, flattening, permanent deformation, loss of elasticity, or damage to the sealing profile is present. Evidence of fuel or vapor leakage at the associated joint can also indicate that the O-ring requires inspection and replacement.

Common Failure Symptoms:

• Cracking or surface deterioration.
• Flattening or deformation of the sealing profile.
• Loss of elasticity or shape retention.
• Visible damage around the sealing surface.
• Evidence of leakage at the associated vapor separator joint.

Equipment Compatibility:

The Honda Marine 16074-ZZ5-003 O-Ring is documented within vapor separator assemblies for Honda Marine BF-series outboard engines. Verified applications and related model configurations, with fitment varying by model and serial range. Verify the complete outboard model, serial range, and part number against Honda Marine parts documentation before purchasing.

• Where is the Honda Marine 16074-ZZ5-003 O-ring used?

  The Honda Marine 16074-ZZ5-003 O-ring is used within the vapor separator assembly to seal the interface between connected components.

• How does an O-ring maintain a seal between vapor separator components?

  The O-ring conforms to the adjacent surfaces when positioned in its sealing groove, helping close the joint and restrict fuel or vapor from passing through the interface.

• Can temperature changes affect an O-ring's sealing performance?

  Yes. Repeated exposure to operating temperatures can affect the material's flexibility and shape over time, which may influence its ability to maintain a consistent seal.

• Why is O-ring elasticity important in a fuel-system seal?

  Elasticity allows the O-ring to maintain contact with the connected surfaces as the connected components experience normal operating conditions.

• What role does the O-ring play in the vapor separator assembly?

  The O-ring provides the sealing interface between vapor separator components, helping maintain fuel-system containment within the assembly.
