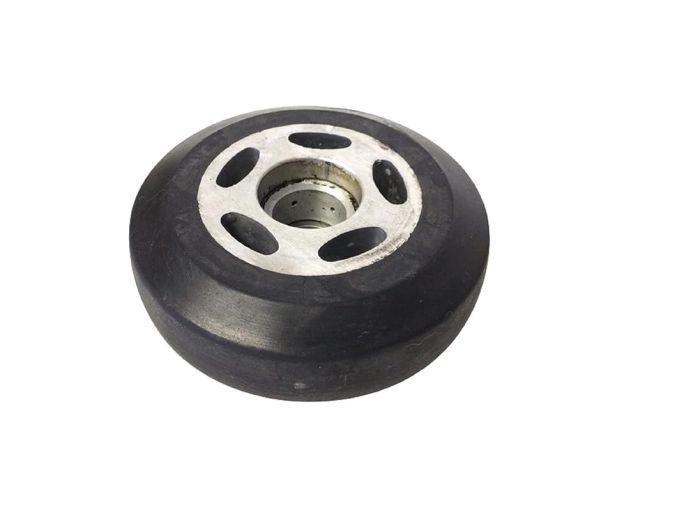

Horizon Fitness 1000100448 Elliptical Old Roller Wheel Set

Product Overview:

Designed to support the moving pedal structure, the Horizon Fitness 1000100448 Elliptical Roller Wheel Set serves as a rolling component within compatible elliptical equipment. The wheel set sits between the pedal assembly and its designated track, allowing the connected structure to move along the path established by the equipment's design. It forms part of the mechanical support arrangement used during normal elliptical operation.

Track Interface:

Contact between the rollers and track establishes the wheel set's operating position within the elliptical assembly. As the pedal structure changes position, the rollers rotate while following the surface of the track. This interaction provides a moving connection between the pedal support components and their guide surface. The wheel set therefore accommodates the changing position of the pedal assembly while remaining engaged with the track throughout its designated range of movement.

Motion Guidance:

Movement through the exercise cycle depends on the pedal assembly remaining aligned with its intended mechanical path. The roller wheel set contributes to this relationship by following the track as the connected pedal components move. Each roller acts as a moving support point within the assembly, helping maintain the prescribed position of the pedal structure relative to the guide path. Changes in the condition of these components can influence how consistently the assembly follows its designed route.

Replacement Guidelines:

Replacement of the Horizon Fitness 1000100448 Elliptical Roller Wheel Set is necessary when visible damage, excessive wear, deformation, or deterioration affects the roller wheel set's intended movement within the elliptical assembly. Inspect the roller wheels and related contact areas for conditions that could affect smooth movement of the assembly. Replace the component when it can no longer maintain its intended movement within the elliptical system.

Common Failure Symptoms:

• Rough or uneven pedal travel
• Unusual sounds from the track area
• Visible cracking or deterioration of the rollers
• Irregular pedal movement
• Changes in the pedal assembly's travel path

Equipment Compatibility:

The Horizon Fitness elliptical must use the specified roller wheel set design for 1000100448. Confirm the elliptical model and existing roller wheel arrangement before purchase to ensure the replacement matches the intended equipment.

• What is the Horizon Fitness 1000100448 Elliptical Roller Wheel Set used for?

  The Horizon Fitness 1000100448 Elliptical Roller Wheel Set supports the moving pedal structure and maintains rolling contact with the designated track.

• Which components work with the roller wheel set?

  The wheel set operates in conjunction with the pedal assembly and the associated track within the elliptical's mechanical structure.

• What may indicate physical deterioration of the rollers?

  Cracking, deformation, surface wear, or other visible changes to the roller components may indicate deterioration that affects their mechanical condition.

• Why is the complete equipment model important when selecting this part?

  Different elliptical configurations can use different component arrangements, so the complete equipment model helps distinguish the required wheel set from similar parts.

• Is this wheel set responsible for creating elliptical resistance?

  No. The roller wheel set supports the mechanical movement of the pedal structure and does not itself generate the exercise resistance.
