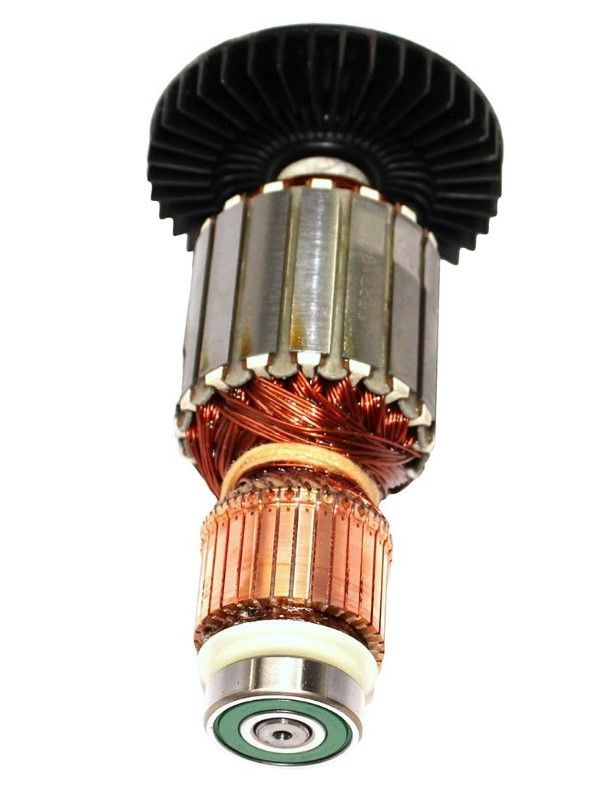

Makita 518710-0 Armature Assembly 115V

Product Overview:

Converts electrical energy into rotational movement to drive the tool’s internal mechanical system. The Makita 518710-0 Armature Assembly 115V forms part of the electric motor, working with the surrounding motor components to generate the rotation needed for operation. This OEM replacement is intended for compatible equipment using the specified electrical configuration.

Electrical Switching:

Works with the motor’s electrical circuit and carbon brushes to convert electrical input into rotating movement within the motor. This switching action allows the armature to continue rotating as electrical power is applied during normal tool operation.

Motor Rotation Stability:

Supports consistent rotation within the motor assembly as the armature works with the surrounding bearings and other components. Proper interaction between these parts helps maintain smooth rotational movement as the tool operates.

Replacement Guidelines:

Replace the Makita 518710-0 Armature Assembly 115V when the existing armature is damaged, overheated, electrically failed, or shows excessive wear that affects normal motor operation. Unusual sparking, noise, or inconsistent motor rotation can also indicate that the armature assembly should be inspected for replacement.

Common Signs of Wear:

• Excessive sparking around the motor brushes
• Unusual motor noise or vibration
• Burning smell during operation
• Motor rotation becoming inconsistent
• Reduced motor operation
• Visible signs of overheating or damage

Equipment Compatibility:

The Makita 518710-0 Armature Assembly 115V is intended for the Makita HM1304B demolition hammer, including compatible Type 2 configurations. As a genuine OEM replacement part, it is designed to match the original armature specifications and 115V motor configuration. Confirm the tool model, type, voltage rating, and original part number before ordering to ensure proper fitment

• What does the Makita 518710-0 Armature Assembly do in the HM1304B demolition hammer?

  The Makita 518710-0 armature is the rotating component of the electric motor. It converts electrical energy into mechanical rotation, providing the motor movement needed to drive the demolition hammer's internal mechanism.

• What are the common signs of a failing Makita 518710-0 armature?

  Excessive brush-area sparking, unusual motor noise, overheating, a burning smell, or inconsistent rotation may indicate an armature problem. Inspect the motor and related electrical components before deciding which part needs replacement.

• Is the Makita 518710-0 compatible with the HM1304B demolition hammer?

  The supplied product information identifies the 518710-0 armature for the Makita HM1304B. Verify the exact tool model and manufacturer's parts diagram before purchasing to confirm the correct application.

• What does the armature assembly support in a demolition hammer?

  It supports motor rotation and helps transfer power through the motor to drive the tool's operating mechanism

• What should I check before ordering the Makita 518710-0 armature assembly?

  Confirm the part number, 115V specification, and HM1304B application against Makita's parts documentation. Also review the listed assembly contents to determine whether the replacement includes the components required for your repair.
